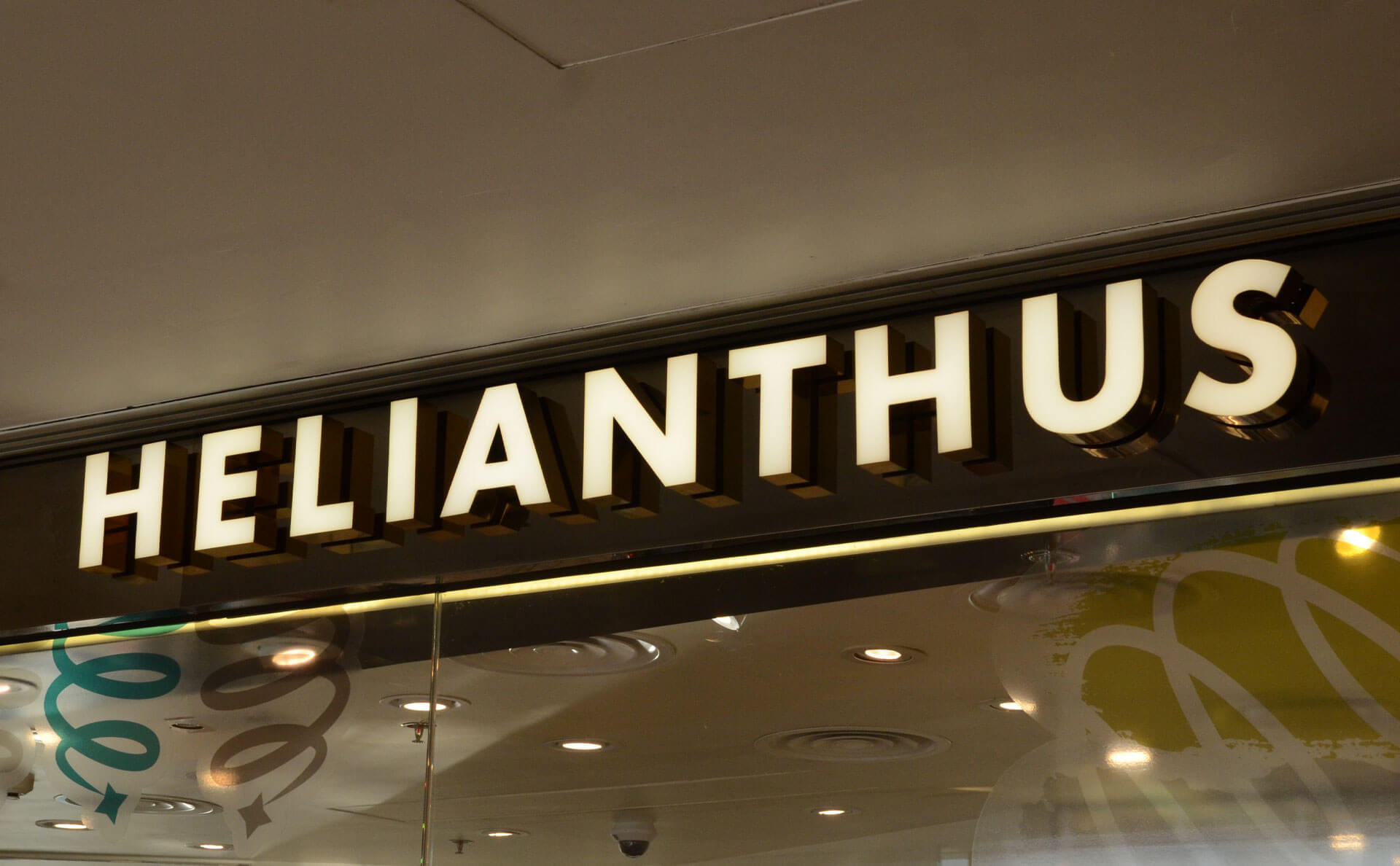

Metal Trimless Channel Letters Signs

Feature:

  • Each letter is separated.
  • Fabricated stainless steel letter shell.
  • LED in the letter shell as lighting sources.
  • CNC engraved opal acrylic front surface, without trim cap or face return on it.
  • Front surface of the letters is illuminated.
  • Using stud bolts fix on the wall by default, could close to the wall.
  • Fit for indoors and outdoors well.

Description Of Metal Trimless Channel Letters Signs

Metal Trimless Channel Letters Signs

Requirements

  • Minimum stroke width up to 0.5"(12mm)
  • Minimum height of letters up to 4” (100mm)

Advantage

This kind of front lit channel letters signs are delicate, without any trim cap or face return on the front of the acrylic front surface, but can not be produced as large front lit channel letters.

A complete set of metal trimless channel letters signs includes the following parts:

  • CNC engraved acrylic front surface
  • LEDs
  • Fabricated metal signs shell
  • Cables
  • AC transformer
  • Mounting Accessories

CNC engraved acrylic front surface

By default, a 5mm acrylic sheet is used to produce the acrylic surface, flush with the metal letters shell. Also can use thicker acrylic and make the acrylic surface partially exposed the metal letter case, with visible thickness.

LEDs

White, warm white, cold white, red, blue, yellow, green or use the GRB/WRGB LED to get the special color, such as pink, purple, etc., or controllable light color.

Fabricated metal signs shell

Made of stainless steel by default. Use the laser cutting process to produce the back panel of the metal signs shell, then use the fabrication process and laser welding process to weld the stainless steel strips on the back panel of the letter to form a hollow letter shell. The inside of the signs shell is usually painted with white paint, so that the light of the signage is more uniform. And LED will be installed on it by default.

Cables

Each individual part will have a two-conductor wire, one for the positive and one negative. The default cable length is about 24"(600mm)

AC transformer

Using MeanWell’s LPV-60-12 AC transformer by default, the input voltage is 90 ~ 264VAC, and the waterproof level is IP67. Please visit https://www.meanwell.com/webapp/product/search.aspx?prod=LPV-60 for more details

Mounting Accessories

Stud bolts: be used to fix the signage on the backing wall.

Installation

We suggest hiring a professional installer to install the signs, we will provide the wiring diagram and installation notice, so the signs could be installed correctly and quickly. Need to drill holes on the backing wall for stud bolts and cables. If you cannot find a signage installer locally, we can help you to contact our partner in the world.

Maintain

As long as the signs are installed correctly, the maintenance is very simple, need to clean the signage about every one month, just wipe the dust with a soft cloth moistened with clean fresh water, never use organic solvents to clean, especially for signs with plating or paint layers.
