Double Sided Light Box Signs

Feature:

  • The signs are in one piece.
  • LED in backing box made in metal or acrylic.
  • Content on front surface and back-panel of the backing box are illuminated.
  • Using stud bolts fix on the wall by default, or hang from ceiling.
  • Fit for indoors and outdoors well.

Content displaying models:

  • Content be UV painted on vinyl then add to the acrylic surface of the backing box or be UV painted directly on the acrylic surface of the backing box.
  • Laser cut vinyl signs on acrylic surface of the backing box.
  • Cut out from the metal surface of the backing box then place acrylic plate under these cutouts parts.
  • Cut out from the metal surface of the backing box, then CNC engraved solid opal acrylic letters be pushed through these cutouts parts, make the content raised from the metal surface of the backing box. The front surface and the border of the acrylic letters be lighted up.
  • Cut out from the metal surface of the backing box, then CNC engraved solid opal acrylic letters be pushed through these cutouts parts, make the content raised from the metal surface of the backing box and add laser cut stainless steel signs on the front surface of acrylic letters. The the border of the acrylic letters be lighted up.

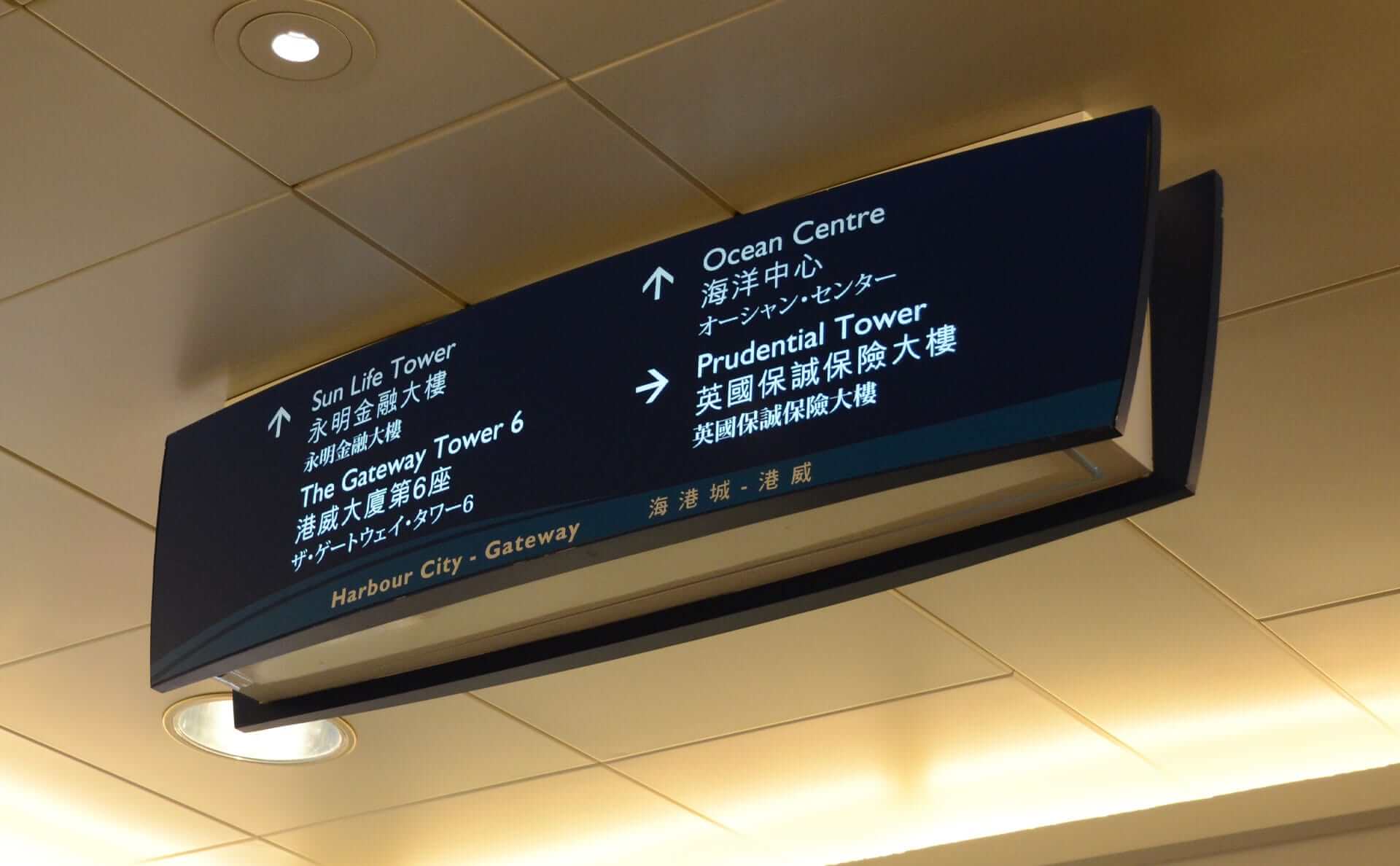

Sample Image

Double Sided Light Box Signs

Basic Properties

Front panel and back panel material:
Acrylic or metal, stainless steel by default
Process technique for front panel:
Laser cutting
Front panel and back panel material default thickness:
0.06"(1.5mm) for stainless steel, 0.2"(5mm) for acrylic
Minimum stroke width of display content:
0.06"(1.5mm)
Default backing box thickness:
3.15"(80mm)
Default welding method:
Laser welding
Installation method:
Use the stud bolts to fix the light box signs on the backing wall or hang from ceiling by default.
Types of illumination:
Front-lit and backlit (or Whole-lit)
Lighting source:
LED module, LED strip or PCB LED
Lighting color:
White, warm white, cold white, red, blue, yellow, green or use the GRB/WRGB LED to get the special color, such as pink, purple, etc., or controllable light color.
Power source:
AC110V, AC220V
Operating power:
DC12V
AC transformer:
Use MW brand AC transformer by default
Lifetime:
Lightening 8-10 hours/day, the lifetime can reach 5 years or above.
Certificate:
CE, UL, ROHS
Intensity:
Can work between -40℃(-40℉) to 80℃(176℉). Waterproof.
Warranty:
Three years limited warranty
Supplied with:
AC transformer, wiring diagram, installation instruction, 1:1 layout template and stud bolts
Package:
Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.
Pay Term:
PAYPAL, Western Union or T/T
Lead time:
Normal production time is 15 working days, depending on the signage order details. Complete the detailed design drawing within 1-3 working days after receiving payment, and start production within 24 hours after receiving the confirmation of the detailed design drawing. We use DHL for shipping by default, the shipping time of DHL door to door delivery by DDU terms is about 5 days. It will take about 25-30 days in total.
Delivery:
DHL, UPS and Fedex etc., express delivery or air/sea freight.
Recommended replacement cycle:
The brightness of the LED will decrease after about 2-3 years, but this does not mean that the LED cannot be lit. If you feel that the brightness of the logo cannot provide you with a satisfactory display effect, you need to consider replacing the LED. In fact, many of our customers have used our LED signs products for more than 5 years without replacing anything.
