3D LED Front-lit Business Signs With Painted Stainless Steel Letter Shell And Face Return

3D LED Front-lit Business Signs With Painted Stainless Steel Letter Shell And Face Return

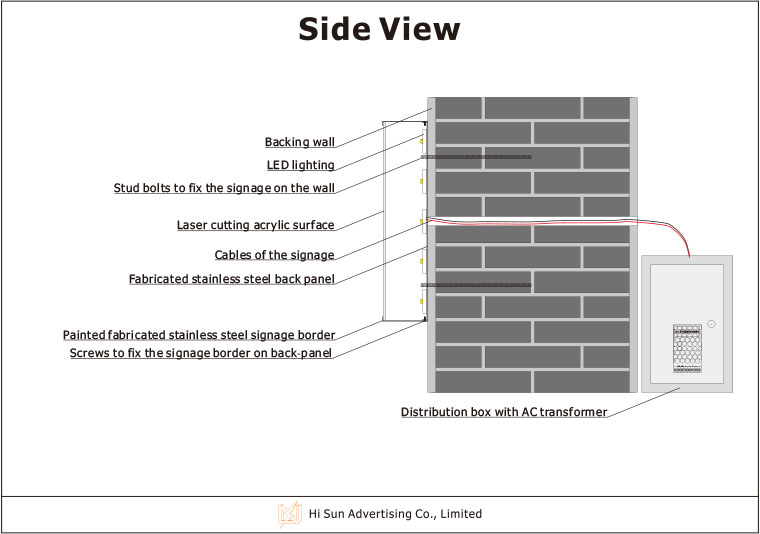

Side view of 3D LED Front-lit Business Signs With Painted Stainless Steel Letter Shell And Face Return
3D LED Front-lit Business Signs With Painted Stainless Steel Letter Shell And Face Return is a very common sign, can work well whether indoors or outdoors, with easy to install, easy maintenance and long life characteristics. The most important is a very good visual effect that attracts attention. Can be in large size.

If you want to know the Wiring Diagram, please visit: http://blog.businesssigns.net/technology/wiring-diagram-for-led-illuminated-signage.html

If you need to download the side view of the 3D LED Front-lit Business Signs With Painted Stainless Steel Letter Shell And Face Return in pdf format, please click: https://www.businesssigns.net/pdf/side-view-of-3d-led-front-lit-business-signs-with-painted-stainless-steel-letter-shell-and-face-return.pdf

Basic Properties

Description:
Since it has the face return, it can be in bigger size signage. The default width for the face return is 4mm. You can custom color for the signs’ shell, just need to tell us the pantone color. We support 4 gloss level: 1)Gloss paint; 2)Semi-gloss paint; 3)Eggshell, satin or low sheen paint; 4)Flat paint. For the lighting color, we will use the color vinyl to control it and fit your requirement
Front panel material:
Acrylic with painted stainless steel face return
Process technique for front panel:
Would use vinyl to control the color
Front panel material default thickness:
3mm
Border panel material:
Stainless steel
Process technique for border:
Painting or powder coated. (1:Gloss paint 2:Semi-gloss paint 3:Eggshell, satin or low sheen paint 4:Flat paint)
Border panel materials default thickness:
1mm
Back panel material:
stainless steel, aluminum or 10mm PVC
Process technique for back panel:
Laser cutting PVC or fabricated metal
Back panel material default thickness:
1mm thickness metal or 10mm thickness PVC
Default welding method:
Laser welding
Minimum stroke width:
12mm
Default signs thickness:
50mm
Installation method:
Use the stud bolts to fix the signage on the backing wall.
Types of illumination:
Front-lit (or Face-lit)
Lighting source:
SMD LED or GRB LED
Lighting color:
White, warm white, cold white, red, blue, yellow, green or use the GRB LED to get the special color, such as pink, purple ect.
Power source:
AC110V, AC220V
Operating power:
DC12V
AC transformer:
Use MW brand AC transformer by default
Lifetime:
Lightening 8-10 hours/day, the lifetime can reach 5 years or above.
Certificate:
CE, UL, ROHS
Intensity:
Can work between -40℃(-40℉) to 80℃(176℉). Waterproof
Warranty:
One-Year limited warranty
Supplied with:
Transformer, installation instruction, 1:1 pager template and stud bolts
Package:
Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.
Pay Term:
PAYPAL, Western Union or T/T
Lead time:
Normal produce time are from 15 business days depending on the product. Production will be arranged within 24 hours after down payment received. We mainly use DHL to send the signage to you, the DHL door to door delivery time is about 3-5 days. The final lead time will be decided based on the detail of your signage case.
Delivery:
DHL, TNT and UPS etc. or sea shipment
Recommended replacement cycle:
Because of the half life of LED lighting, the brightness of the LED lighting might be too weak to keep the best lighting effects after 3 years, so we suggest renewing the signage after 3 years or when you feel the lighting effects is too weak.
