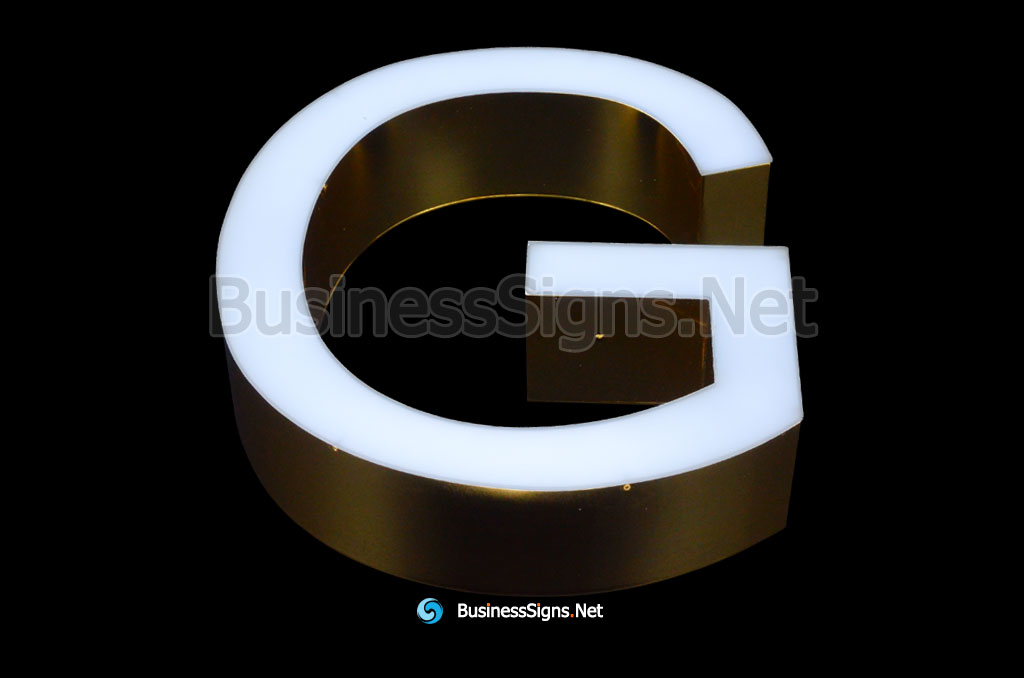

3D LED Front-lit Business Signs With Gold Plated Mirror Polished Stainless Steel Letter Shell

Documents:

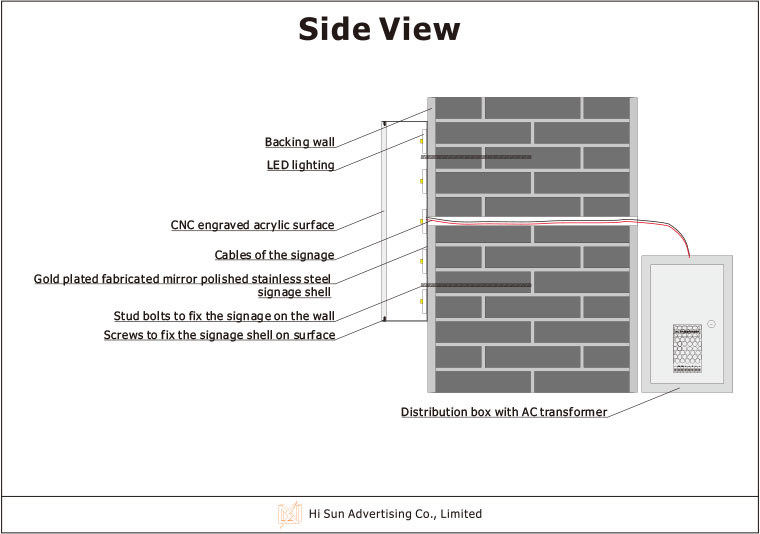

• Side View Schematic
• Wiring Diagram

Basic Properties

Front panel material:

Acrylic

Process technique for front panel:

CNC engraving, would use vinyl to control the color

Front panel material default thickness:

0.2"(5mm)

Border panel material:

304 stainless steel or 316 stainless steel

Process technique for border

Laser cutting, laser welding and painting

Border panel materials default thickness:

0.04"(1mm)

Back panel material:

304 stainless steel or 316 stainless steel

Process technique for back panel:

Laser cutting and laser welding

Back panel material default thickness:

0.04"(1mm)

Minimum stroke width:

0.5"(12mm)

Default signs thickness:

1.97"(50mm)

Default welding method:

Laser welding

Installation method:

Use the stud bolts to fix the signage on the backing wall.

Types of illumination:

Front-lit (or Face-lit)

Lighting source:

LED module, LED strip or PCB LED

Lighting color:

White, warm white, cold white, red, blue, yellow, green or use the GRB/WRGB LED to get the special color, such as pink, purple, etc., or controllable light color.

Power source:

AC110V, AC220V

Operating power:

DC12V

AC transformer:

Use MW brand AC transformer by default

Lifetime:

Lightening 8-10 hours/day, the lifetime can reach 5 years or above.

Certificate:

CE, UL, ROHS

Intensity:

Can work between -40℃(-40℉) to 80℃(176℉). Waterproof.

Warranty:

Three years limited warranty

Supplied with:

AC transformer, wiring diagram, installation instruction, 1:1 layout template and stud bolts

Package:

Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.

Pay Term:

PAYPAL, Western Union or T/T

Lead time:

Normal production time is 15 working days, depending on the signage order details. Complete the detailed design drawing within 1-3 working days after receiving payment, and start production within 24 hours after receiving the confirmation of the detailed design drawing. We use DHL for shipping by default, the shipping time of DHL door to door delivery by DDU terms is about 5 days. It will take about 25-30 days in total.

Delivery:

DHL, UPS and Fedex etc., express delivery or air/sea freight.

Recommended replacement cycle:

The brightness of the LED will decrease after about 2-3 years, but this does not mean that the LED cannot be lit. If you feel that the brightness of the logo cannot provide you with a satisfactory display effect, you need to consider replacing the LED. In fact, many of our customers have used our LED signs products for more than 5 years without replacing anything.
