A Good Business Signs Is A Good Sign Of Your Business

Custom Business Signs

Contact Quickly


3D LED Engraved Acrylic Whole-lit Business Signs

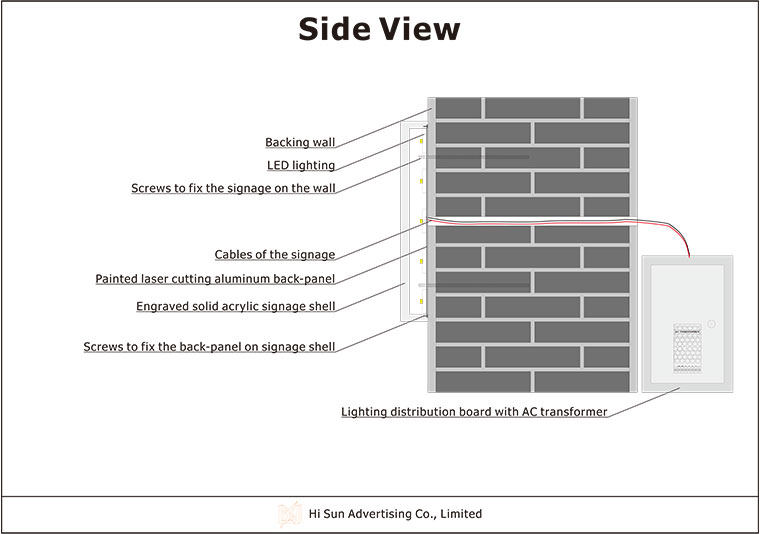

Side view of 3D LED Engraved Acrylic Whole-lit Business Signs

3D LED Engraved Whole-lit Business Signs is a new type of whole-lit signage. The 3D LED Whole-lit Business Signs is use fabricated process and use the glue to fix the surface to the border, so if the glue lose effectiveness after a long time, the signage shell would in pieces again. But 3D LED Engraved Whole-lit Business Signs is produced in solid acrylic by engraved process, so the signage shell is in one piece and strong. Now we use 20mm, 25mm, 30mm or 35mm thickness acrylic to produce it.

If you want to know the Wiring Diagram, please visit: http://blog.businesssigns.net/technology/wiring-diagram-for-led-illuminated-signage.html

If you need to download the side view of the 3D LED Engraved Acrylic Whole-lit Business Signs in pdf format, please click: https://www.businesssigns.net/pdf/side-view-of-3d-led-engraved-acrylic-whole-lit-business-signs.pdf

Basic Properties

Someone call this kind of signage as LED Acrylic mini signage. Depend one the detail of the signage content, this kind of individual LED front-lit signage even could be 20mm thickness.
Signage body:
Process technique for Signage body:
Engraved and laser cutting
Signage body default thickness:
Back panel material:
Process technique for back panel:
laser cutting and painted
Back panel material default thickness:
Minimum stroke width:
Default signs thickness:
Installation method:
Use the stud bolts to fix the signage on the backing wall.
Types of illumination:
Lighting source:
Lighting color:
White, warm white, cold white, red, blue, yellow, green or use the GRB LED to get the special color, such as pink, purple ect.
Power source:
AC110V, AC220V
Operating power:
AC transformer:
Use MW brand AC transformer by default
Lightening 8-10 hours/day, the lifetime can reach 5 years or above.
Can work between -40℃(-40℉) to 80℃(176℉). Waterproof
One-Year limited warranty
Supplied with:
Transformer, installation instruction, 1:1 pager template and stud bolts
Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.
Pay Term:
PAYPAL, Western Union or T/T
Lead time:
Normal produce time are from 15 business days depending on the product. Production will be arranged within 24 hours after down payment received. We mainly use DHL to send the signage to you, the DHL door to door delivery time is about 3-5 days. The final lead time will be decided based on the detail of your signage case.
DHL, TNT and UPS etc. or sea shipment
Recommended replacement cycle:
Because of the half life of LED lighting, the brightness of the LED lighting might be too weak to keep the best lighting effects after 3 years, so we suggest renewing the signage after 3 years or when you feel the lighting effects is too weak.
