3D LED Backlit Business Signs With Painted Stainless Steel Letter Shell And Visible Acrylic Back-panel

Feature:

  • Each letter is separated.
  • Painted/powder coated fabricated stainless steel letter shell.
  • LED in the letter shell as lighting sources.
  • CNC engraved solid opal acrylic back-panel with visible thickness.
  • Back-panel of the letters is illuminated.
  • Using stud bolts fix on the wall by default, could close to the wall.
  • Fit for indoors and outdoors well.

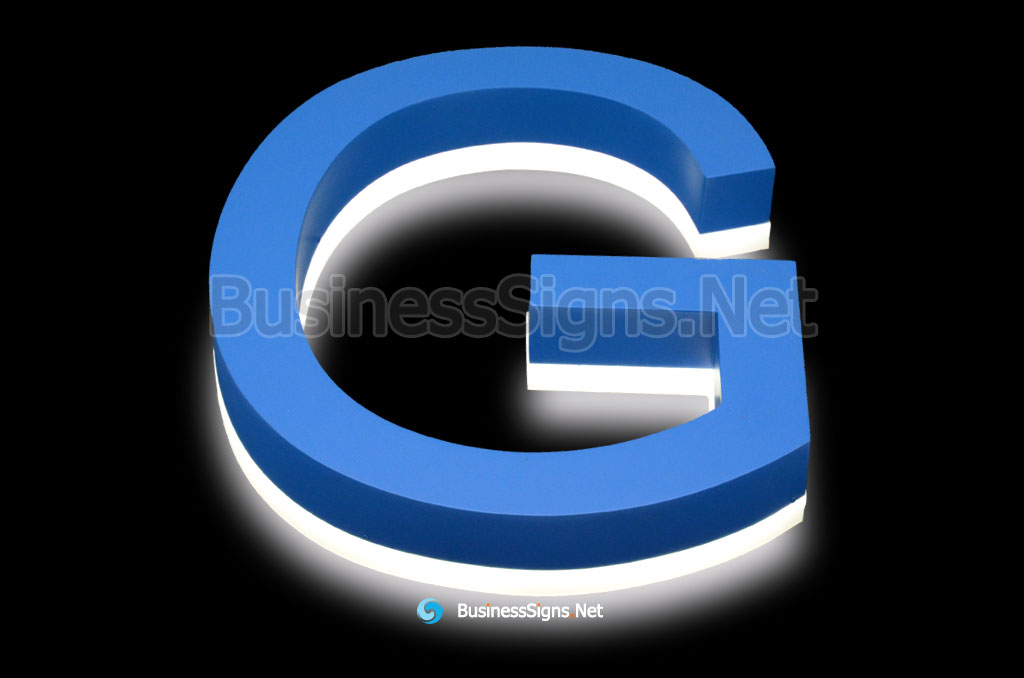

Sample Image

3D LED Backlit Business Signs With Painted Stainless Steel Letter Shell And Visible Acrylic Back-panel

Documents:

Basic Properties

Front panel material:
304 stainless steel or 316 stainless steel
Process technique for front panel:
Laser cutting and painting or powder coating
Front panel material default thickness:
0.06"(1.5mm)
Border panel material:
304 stainless steel or 316 stainless steel
Process technique for border:
Laser cutting, welding and painting or powder coating
Border panel materials default thickness:
0.04"(1mm)
Back panel material:
Acrylic
Process technique for back panel:
CNC engraving
Back panel material default thickness:
0.79"(20mm)
Minimum stroke width:
0.5"(12mm)
Default signs thickness:
1.38"(35mm)
Default welding method:
Laser welding

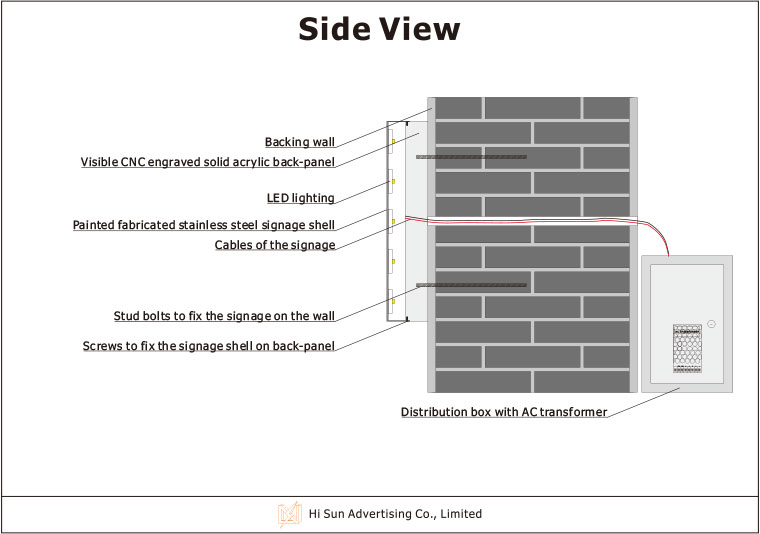

Installation method:
Use the stud bolts to fix the signage on the backing wall.
Types of illumination:
Back-lit (or Halo-lit)
Lighting source:
LED module, LED strip or PCB LED
Lighting color:
White, warm white, cold white, red, blue, yellow, green or use the GRB/WRGB LED to get the special color, such as pink, purple, etc., or controllable light color.
Power source:
AC110V, AC220V
Operating power:
DC12V
AC transformer:
Use MW brand AC transformer by default
Lifetime:
Lightening 8-10 hours/day, the lifetime can reach 5 years or above.
Certificate:
CE, UL, ROHS
Intensity:
Can work between -40℃(-40℉) to 80℃(176℉). Waterproof
Warranty:
Three years limited warranty
Supplied with:
AC transformer, wiring diagram, installation instruction, 1:1 layout template and stud bolts
Package:
Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.
Pay Term:
PAYPAL, Western Union or T/T
Lead time:
Normal production time is 15 working days, depending on the signage order details. Complete the detailed design drawing within 1-3 working days after receiving payment, and start production within 24 hours after receiving the confirmation of the detailed design drawing. We use DHL for shipping by default, the shipping time of DHL door to door delivery by DDU terms is about 5 days. It will take about 25-30 days in total.
Delivery:
DHL, UPS and Fedex etc., express delivery or air/sea freight.
Recommended replacement cycle:
The brightness of the LED will decrease after about 2-3 years, but this does not mean that the LED cannot be lit. If you feel that the brightness of the logo cannot provide you with a satisfactory display effect, you need to consider replacing the LED. In fact, many of our customers have used our LED signs products for more than 5 years without replacing anything.
