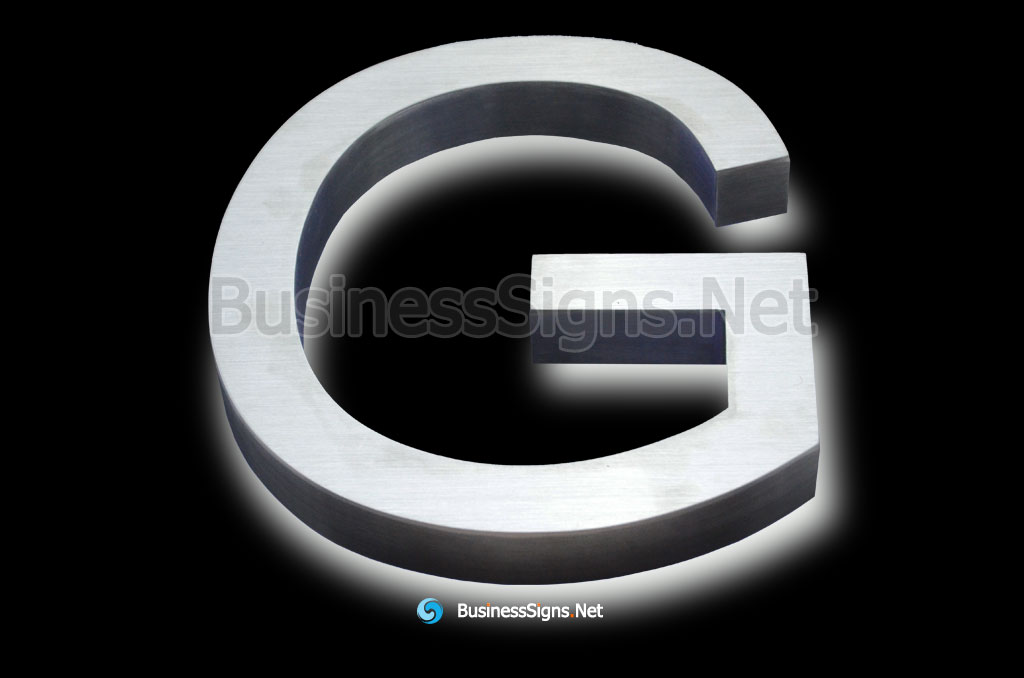

3D LED Backlit Business Signs With Brushed Stainless Steel Letter Shell

3D LED Backlit Business Signs With Brushed Stainless Steel Letter Shell is a very common signage, can work well whether indoors or outdoors, with easy to install, easy maintenance and long life characteristics. The most important is a very good visual effect that attracts attention.

If you want to know the Wiring Diagram, please visit: http://blog.businesssigns.net/technology/wiring-diagram-for-led-illuminated-signage.html

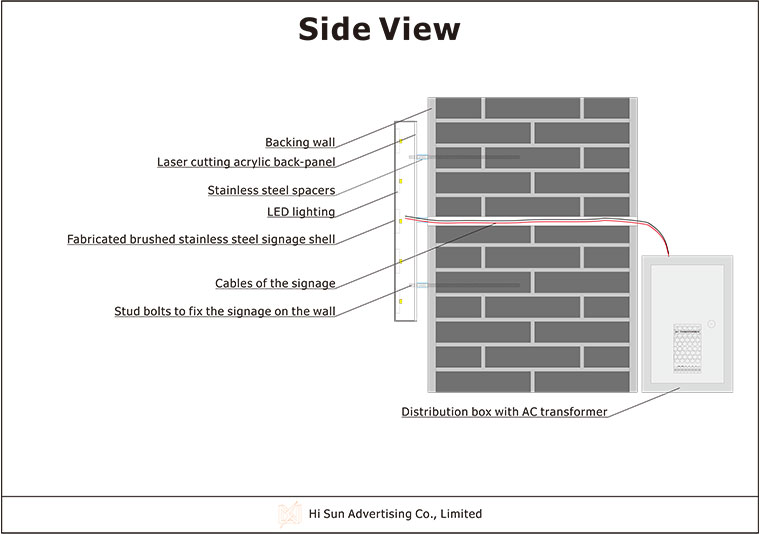

If you need to download the side view of the 3D LED Backlit Business Signs With Brushed Stainless Steel Letter Shell in pdf format, please click: https://www.businesssigns.net/pdf/side-view-of-3d-led-backlit-business-signs-with-brushed-stainless-steel-letter-shell.pdf

Basic Properties

Front panel material:

304 stainless steel or 316 stainless steel

Process technique for front panel:

Brushed

Front panel material default thickness:

1.5mm

Border panel material:

304 stainless steel or 316 stainless steel

Process technique for border:

Brushed

Border panel materials default thickness:

1mm

Back panel material:

Acrylic or acrylic with color vinyl

Process technique for back panel:

Laser cutting

Back panel material default thickness:

3mm

Default welding method:

Laser welding

Minimum stroke width:

12mm

Default overall thickness:

30mm

Stainless steel spacers default length:

20mm

Installation method:

Use the stud bolts to fix the signage on the backing wall. In order to get the best halo effect, we suggest making this kind of signage left the backing wall about 20mm. We will supply the stainless steel spacers which could be used to hide the stud bolts and cables, also could make every individual part of the signage could left the backing wall in same distance.

Types of illumination:

Back-lit (or Halo-lit)

Lighting source:

SMD LED or GRB LED

Lighting color:

White, warm white, cold white, red, blue, yellow, green or use the GRB LED to get the special color, such as pink, purple ect.

Power source:

AC110V, AC220V

Operating power:

DC12V

AC transformer:

Use MW brand AC transformer by default

Lifetime:

Lightening 8-10 hours/day, the lifetime can reach 5 years or above.

Certificate:

CE, UL, ROHS

Intensity:

Can work between -40℃(-40℉) to 80℃(176℉). Waterproof

Warranty:

One-Year limited warranty

Supplied with:

Transformer, installation instruction, 1:1 pager template and stud bolts

Package:

Single letter covered with paper and bubble wrap, wooden case with Styrofoam. Also may be packed per the customer requirements.

Pay Term:

PAYPAL, Western Union or T/T

Lead time:

Normal produce time are from 15 business days depending on the product. Production will be arranged within 24 hours after down payment received. We mainly use DHL to send the signage to you, the DHL door to door delivery time is about 3-5 days. The final lead time will be decided based on the detail of your signage case.

Delivery:

DHL, TNT and UPS etc. or sea shipment

Recommended replacement cycle:

Because of the half life of LED lighting, the brightness of the LED lighting might be too weak to keep the best lighting effects after 3 years, so we suggest renewing the signage after 3 years or when you feel the lighting effects is too weak.
