Halo Channel Letters Signs

Feature:

  • Each letter is separated.
  • Fabricated metal letter shell or CNC engraved acrylic letter shell.
  • LED in the letter shell as lighting sources.
  • Back panel of the letters is illuminated.
  • Using stud bolts fix on the wall by default.
  • Fit for indoors and outdoors well.

Description Of Halo Channel Letters Signs

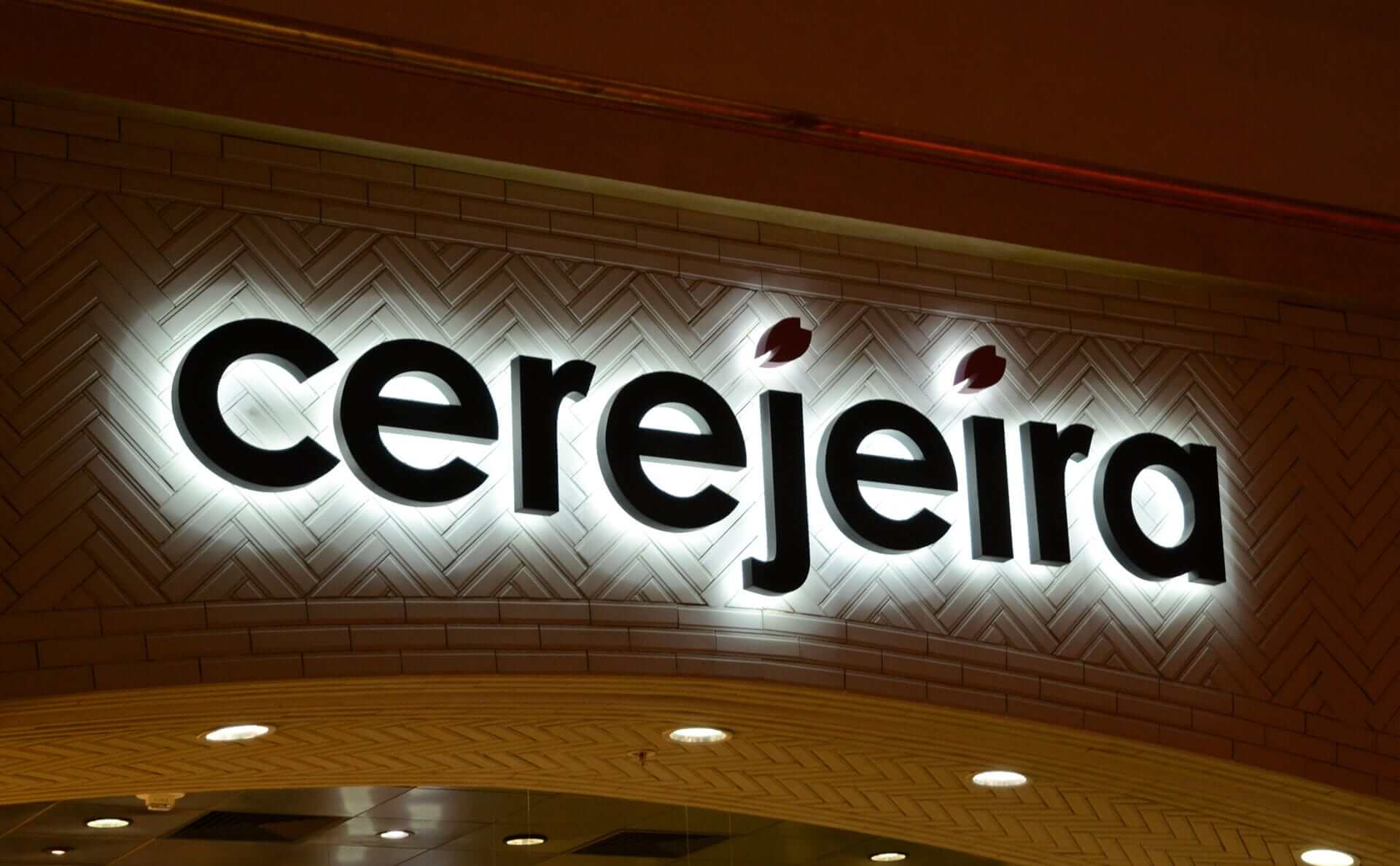

Halo Channel Letters Signs

Halo channel letters signs are also called Reverse channel letters or Backlit channel letters, only the back-panel is lighted, the letters are separated. Both the logo and the letters are all could be the custom halo channel letters signs, the light through the back-panel of the signage illuminates the backing wall around the outline of the letters, giving the signage an amazing halo effect, making the signage seem to float on the wall. Whether indoor or outdoor, our high quality custom halo channel letters signs will last for years, helping your business stand out.

When you hear halo signs or LED halo signs or halo lit channel letters, it usually refers to this kind of sign, it is a very widely used illuminated signs, with many different names. Individual fabricated metal signage shell with halo lighting effect. Signage border bent by hand then welded to laser cutting surface, to form a hollow signs shell. The LED is installed in the sign shell as light sources.

On our LED Backlit Signs Gallery you can find a lot of halo channel letters signs cases.

  • Most of the current halo channel letters signs use safe LEDs as light sources, so an AC transformer will be used to provide 12VDC power for LEDs. Need to set up electrical junctions in the ceiling near the sign installation position or behind the wall.
  • The brightness of the LED will decrease after about 2-3 years, but this does not mean that the LED cannot be lit. If you feel that the brightness of the logo cannot provide you with a satisfactory display effect, you need to consider replacing the LED. In fact, many of our customers have used the halo channel letters signs for more than 5 years without replacing anything.
  • The distance between the AC transformer and the halo channel letters signs needs to be controlled within 5 meters (about 16.4 feet), too far will cause excessive DC voltage loss.
  • The AC transformer is best installed in a weak current box with cooling holes or placed in a place with good ventilation. so that the transformer can dissipate heat normally and increase the service life of the AC transformer.
  • We suggest hiring a professional installer to install the signs, we will provide the wiring diagram and installation notice, so the signs could be installed correctly and quickly.
  • We use the 304 stainless steel for the metal part of the halo channel letters signs by default, if your area is near the sea, then we will use the 316 stainless steel to build the signs shell, which is marine grade and need not to worry about the rust problem.
  • If it is to be used outdoors and there are frequent heavy rains in the area, we will use the IP67 LED and add water leakage holes at the bottom of the signs shell then do anti-light leakage treatment.

Halo channel letters signs models

Halo channel letters signs can be divided into the following models:

  • Common Metal Backlit Channel Letters Signs: Using the fabricated metal letter shell, in stainless steel by default, with LED inside, the acrylic backboard is hidden in the letter shell, and the signs need to be installed away from the wall.
  • Luxury Metal Backlit Channel Letters Signs: Using the fabricated metal letter shell, in stainless steel by default, with LED inside, the acrylic backplane is partially exposed outside the letter shell, and the signs can be installed close to the wall.
  • Acrylic Backlit Channel Letters Signs: Using CNC engraved acrylic letter shell, with LED inside, the front and the border near the front are painted so that these parts do not shine, and the signs can be installed close to the wall.

Visibility

Halo channel letters signs have a good viewing distance. According to experience, there is a certain proportional relationship between the height of a letter and the viewing distance. The viewing distance of a letter is about 100-120 times the height of the letter. For example, a letter with a height of 10cm can be read at a distance of about 10 meters, and a letter with a height of 10 inches can be read at a distance of about 100 feet.

Installation

Halo channel letters signs can be installed in the following ways:

  • Direct Mount: Halo channel letters signs are mounted directly to the wall by stud bolts, needing drill holes in the wall to install stud bolts and through wires.
  • Raceway installation: Halo channel letters signs are mounted on the raceway, raceway is a rectangular mounting structure which serves as both a container for the channel letters' cables, even AC transformer, and a mounting structure. Then the signs and raceway are mounted on the wall as a whole. Compared with direct installation, using raceway installation can make installation easier, because there is no need to drill many holes in the wall. Mostyl, each channel letter has 3 stud bolts and 1 wire, If it is installed directly, it needs to drill 4 holes on the wall. Then for a set of signs to have 10 letters, it needs to drill at least 40 holes, but if it is installed on the raceway, it probably means that 10 holes is enough.
  • Hanging installation: use stainless steel rope or stainless steel round tube to hang from the ceiling, or hang from the bracket.
  • Bracket installation: similar to raceway installation, the signs are installed on the bracket, then the signs and the bracket are installed on the wall together.

Maintain

As long as the halo channel letters signs are installed correctly, the maintenance is very simple, just wipe the dust with a soft cloth moistened with clean fresh water, never use organic solvents to clean, especially for signs with plating or paint layers.

Quick Form

If we don't receive your email reply, we will send you a SMS.

Our business signs are all custom made, and different details result in different costs. The more details you can provide, the more accurate the response you will receive. Thank you very much!

CAPTCHA image

Featured Signs

Faux Neon Signs

Faux Neon Signs
The letters are separated, 3D metal letters signs with LED inside, using CNC engraved acrylic to simulate neon glass tubes, and the front surface are all illuminated, perfect neon style. Fit for outdoor and indoor.

Marquee Neon Signs

Marquee Neon Signs
The letters of are separated, 3D metal letters signs with LED inside, using CNC engraved acrylic to simulate neon glass tubes, and the front surface are all illuminated, with open face channel outside, perfect neon style and maquee style. Fit for outdoor and indoor.

Backlit Channel Letters Signs

Backlit Channel Letters Signs
The letters are separated, 3D metal or acrylic letters signs with LED inside, the back-panel is illuminated, which amazing halo effect. Fit for outdoor and indoor.

Front Lit Channel Letters Signs

Front Lit Channel Letters Signs
The letters are separated, 3D metal or acrylic letters signs with LED inside, the front surface is illuminated, very bright. Fit for outdoor and indoor.

Front and Backlit Channel Letters Signs

Front and Backlit Channel Letters Signs
The letters are separated, 3D metal or acrylic letters signs with LED inside, the front surface and back-panel are all illuminated, beautiful effect. Fit for outdoor and indoor.

Outdoor Halo Channel Letters Signs

High-quality outdoor halo channel letters are an excellent choice for making a lasting impression on passers-by. Signage helps establish your brand identity by associating a location with your specific business. Your business can stand out from your competitors and expand your target audience.

Our outdoor halo channel letters are suitable for most outdoor environments, including strong sunlight, heavy rain, monsoons, high or low temperatures, and marine environments. We have rich experience in producing weatherproof signs, just tell us your concerns and we will solve them.

Get A Free Quote

Workflow

  1. 1: Quotation

    Please let us know your requirements well by using our quote form, one of our sales staff will get back to you within one business day and send a quotation file to you ASAP.

  2. 2: Payment

    Once you confirm the quotation, we will send a PayPal Invoice to you so that you can complete the payment. Please use your PayPal account to complete the payment. Also accept TT.

  3. 3: Detailed Design

    Once our finance team confirms that we have received your payment, we will start a detailed design process, and we will send you the drawing file for your confirmation.

  4. 4: Production

    We will begin the production when we have received your confirmation for the detailed design drawing. Most signage production cases will be finished in 15 business days.

  5. 5: Proof

    When we finish the production, we will have a test to check the issue, if everything is fine, we will send you the photo proof of your signs for your confirmation before shipment.

  6. 6: Shipment

    We use DHL door to door delivery by DDU terms by default, the shipping time is about 5 days. Also can use other express companies such as UPS, FEDEX, TNT, etc., also could use air freight.

Custom Halo Channel Letters Signs

We provide high quality custom halo channel letters sign. A custom sign is a great option for advertising your business, your letters signs and logo signs will be different from your competitors, which can help your business stand out. Whether it is font, material, color, type or size, etc., please tell us your requirements, and we will help you turn the sign you have in mind into a high-quality custom business signage with reasonable price, long service life and amazing effect.

Custom Backlit Signs

Why choosing us

Metal Halo Channel Letters Signs

Metal halo channel letters using fabricated 3D metal signs shell, stainless steel by default, with LED inside as light source. When lighted, the light through the back-panel of the letters illuminates the backing wall around the outline of the letters, giving the metal halo channel letters signs an amazing halo effect, making these lettering seem to float on the wall. Very beautiful and eye-catching, fit for indoor and outdoor well.
